RF Elements BR-WG2 Smart Bracket for Wave AP Gen2
32,00 € (39,68 € συμπ. ΦΠΑ)

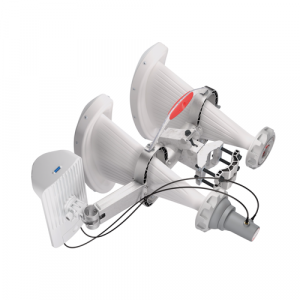

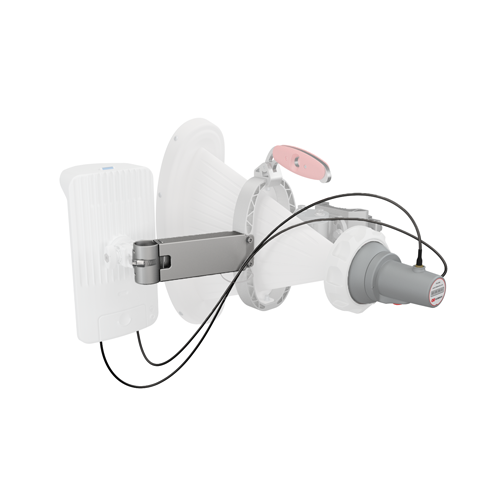

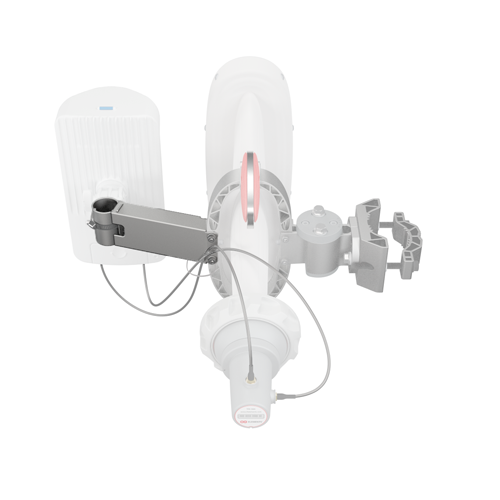

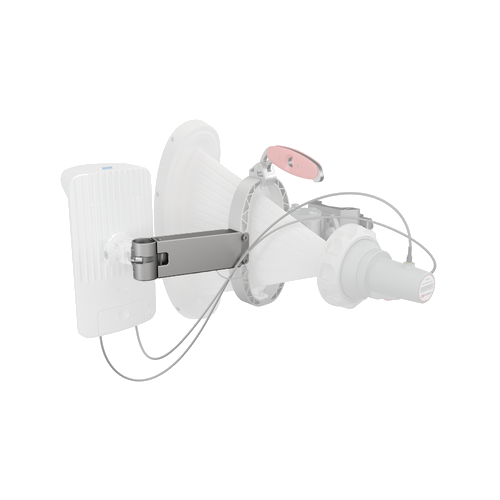

The BR-WG2 Smart Bracket adds a dedicated mounting point that allows the UI Wave AP Gen2 to be installed directly on any RF elements Asymmetrical Horn Antenna. This creates a clean, space-efficient setup ideal for deployments where a 90° Asymmetrical Horn serves as a failover 5GHz antenna and as a supporting mounting structure. Once mounted, the Wave AP Gen2 can be aligned in azimuth and elevation together with the horn, ensuring precise and coordinated positioning. The horizontal mounting orientation also saves valuable vertical tower space, enabling more efficient stacking of equipment.
DATASHEETΕξαντλημένο|Επικοινωνήστε για ημερ. Διαθεσιμότητας default

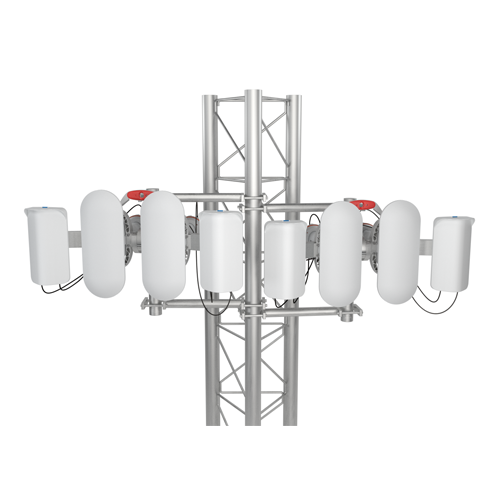

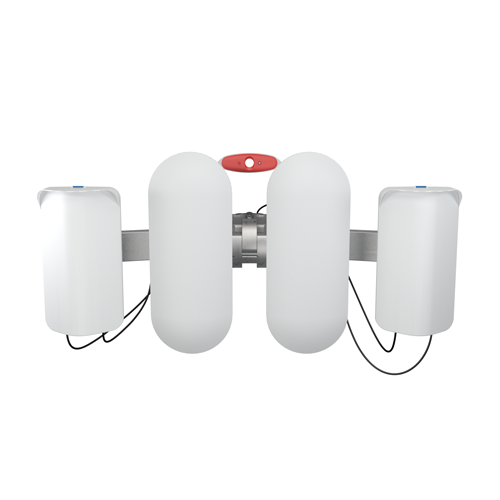

BR-WG2 is compatible with any RF elements Asymmetrical Horn Antenna featuring the structural aluminum ring. The mounted Wave AP device can use the horn either as a failover antenna or simply as a smart mounting point to build a more compact, more integrated installation. Up to two BR-WG2 brackets can be installed on a single 4×4 Asymmetrical Horn (one on each side). Although BR-WG2 was designed specifically for the UI Wave AP Gen2, its platform offers broad compatibility. It can also mount various devices such as 60GHz access points, cameras, IoT sensors, other compact CPE or radio units. This makes the BR-WG2 an extremely flexible and versatile mounting solution for modern wireless deployments.
- Materials Extruded Aluminum Profile with passivated surface, Stainless Steel hardware
- Enviromental RoHS
- Flame Rating UL 94 HB
- Provided Mounting Diameter 40mm (1.6inch)
- Temperature -30°C to +55°C (-22°F to +131°F)
- Wind Survival 180km/h (110mph)
- Mechanical tilt provided by the base antenna
