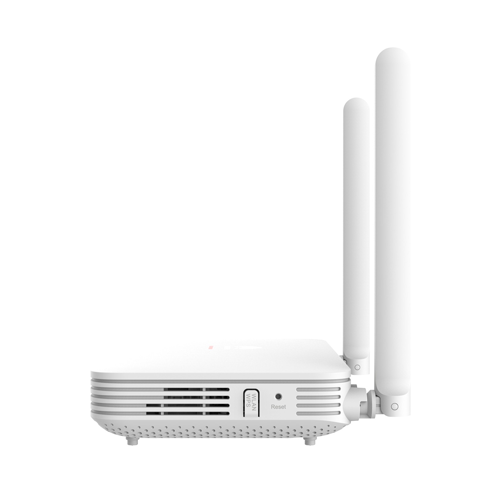

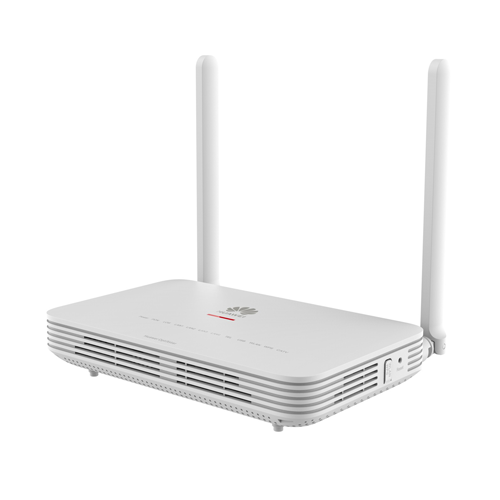

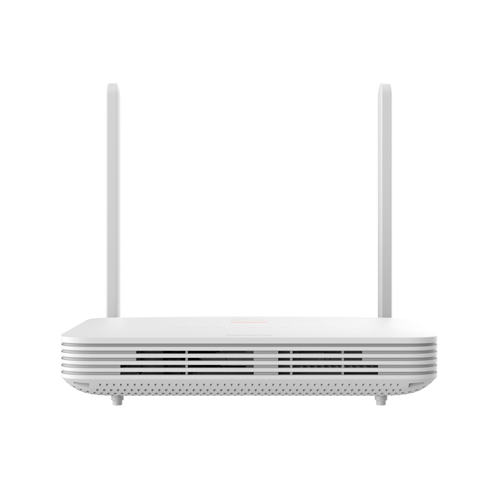

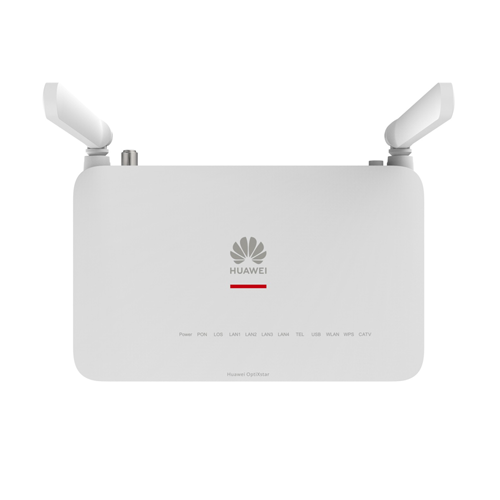

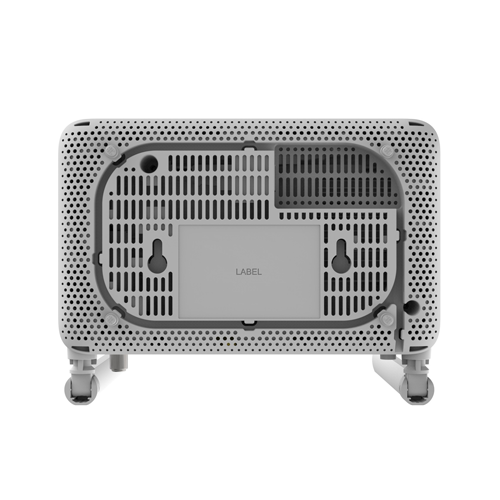

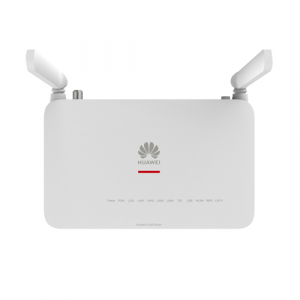

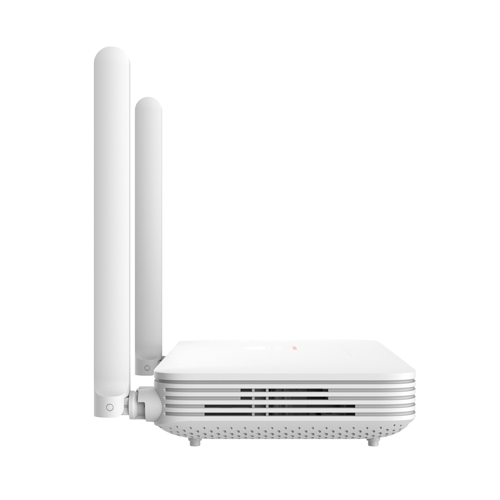

Huawei OptiXstar EG8147X6-10 WiFi 6 GPON ONT Gateway
Call for Price
The Huawei OptiXstar EG8147X6-10 is an intelligent GPON and Wi-Fi routing type ONT. It uses the GPON Wi-Fi technology to implement ultra broadband access, high performance and wide coverage for users. The high forwarding performance ensures the user experience of voice, data and HD video services, and provides customers with an ideal all optical access solution and future oriented service support capability.
DATASHEETΔιαθέσιμο κατόπιν παραγγελίας
Maximum modulation: 1024 QAM – Wireless frequency: 2.4 + 5 GHz (dual band) – WiFi standards: 802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax – MU-MIMO: Yes – Security: WPA3 AES – 2.4GHz MIMO: 2 x 2 – 5GHz MIMO: 2 x 2 – Type of antenna: Fixed – Fixed antennas: 2 – Roaming: Yes – Antenna gain: 5dBi – Wavelength – Tx/Rx: 1490nm / 1310nm – Transfer type: GPON – Polishing type: APC – Optical Connectors: 1x SC – LAN speed: 4x 10/100/1000Mbps – Gigabit LAN: Yes – PON SFP cages: 1 – USB ports 2.0: 1 – USB: Yes – Max. power consumption: 18W – Power via connector/terminal: 12V / 1.5A – Purpose: Indoor – Buttons: Reset, power, WiFi/WPS – Operating temperature: 0°C up to 40°C – Weight: 305g – Width: 195mm – Height: 35mm – Depth: 120mm – Operating mode: AP Router – IPv6 support: Yes.

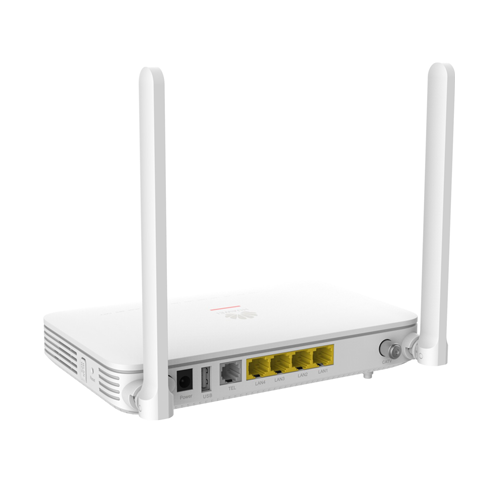

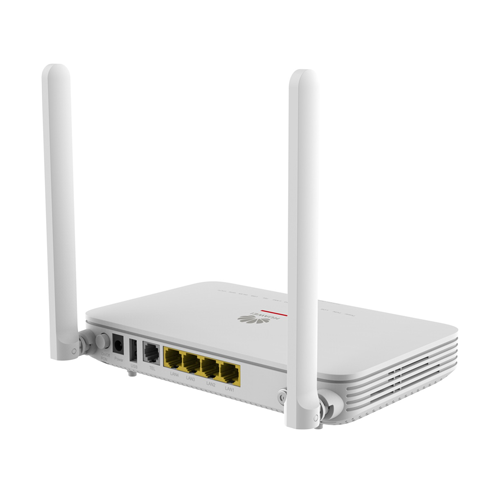

It provides 4x GE ports, 1x POTS port, 1x CATV port, 1x USB port and Wi-Fi function.
- Next generation Wi-Fi technology
- Smart service
- Smart interconnection
- Smart O&M
