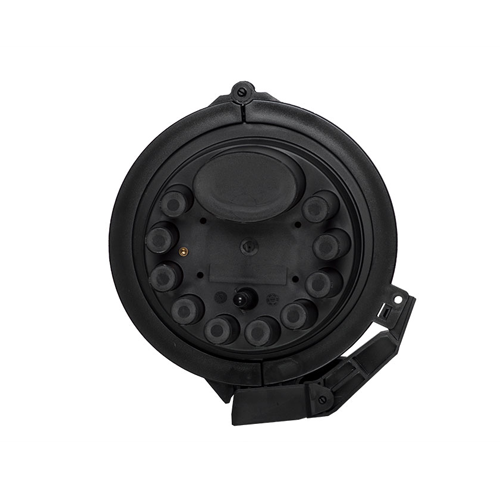

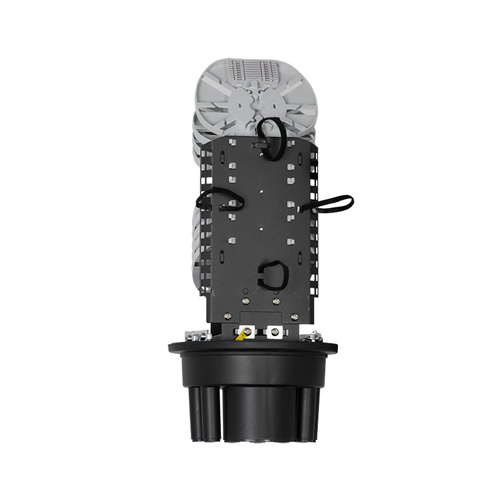

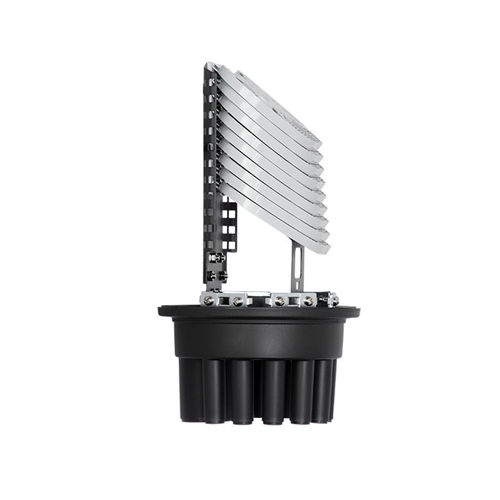

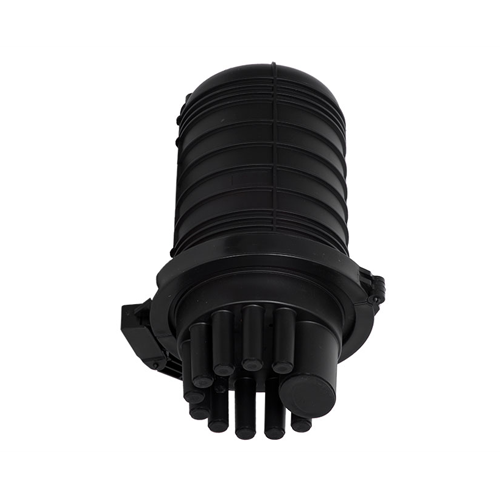

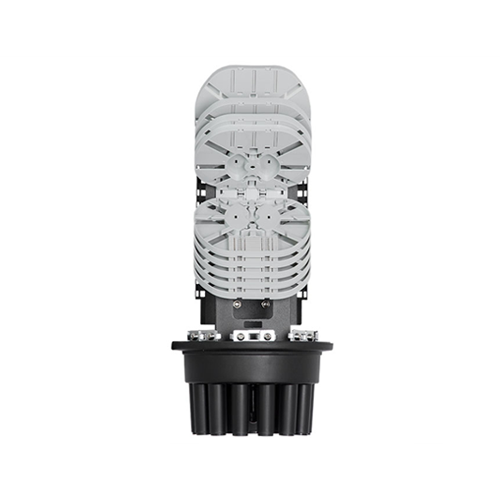

Fiber Optic Splice Enclosure for 144 Fibers
59,00 € (73,16 € συμπ. ΦΠΑ)
Optical ground encloser with the possibility of installation underground or outside, for example on a pole and is used to connect optical cables, in a maximum of 144 fibers in 9 built-in optical cassettes. Each cassette can hold up to 16 welds in 2 rows. The earth coupling has IP68 protection. The package includes water-resistant cable glands.
Εξαντλημένο|Επικοινωνήστε για ημερ. Διαθεσιμότητας default
- Height: 320mm
- Hood diameter: 140mm
- Material: Polypropylene (PP)
- Amount of trays: 9
- Maximum number of splices: 144
- Amount of outlets: 11 (10 round/1 oval)
- Round outlets diameter: 10×15 mm
- Oval outlet dimensions: 65×45 mm
- Optimal operating temperature: -40°C~+65°C
- IP Rating: 68
- Weight: 1.2kg
- Color: black
Set includes:
- Trays: 9
- Splice sleeves: 144
- Cable heat shrink sleeves: 11
- Cable clip
- Stainless steel metal clamps: 4
