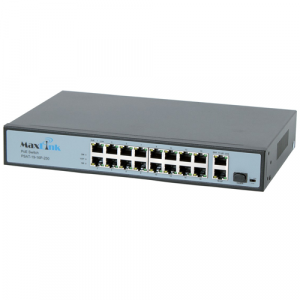

MaxLink 18x LAN/16x PoE 802.3af/at 150W 1xSFP Unmanaged PoE Switch

Manual mode switch: Normal “N”: The switch supplies the device at a distance of no more than 100m. The port-to-port throughput is 10/100Mbps. 250m : Long Range Mode. Switch powering devices up to 250m with a reduced 10Mbps throughput per port.

• Design: Desktop

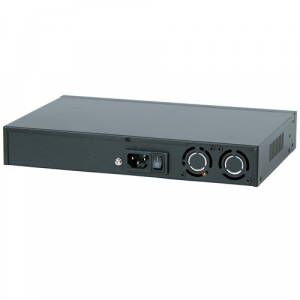

• Fans: (2) 40 x 40mm
• Chassis design: Metal
• Buttons: Normal / 250m
• Operating temperature [°C]: 0 up to 40
• Height[mm]:45, Depth[mm]:220, Width[mm]:285
• LAN speed: (16) 10/100Mbps + (2) 10/100/1000Mbps
• Optical interfaces: (1) 1000Mbps
• Power type: Mains power (230V)
• PoE type: PoE-Out (only)
• PoE-Out standards: 802.3af, 802.3at
• PoE Out ports: 16
• PoE budget[W]: 150
• Long range PoE – up to 250m: Yes
• Max. power consumption[W]: 150
• Power via connector/terminal: 230V AC
• Switchning capacity[Gbps]: 9.2
• MAC address table: 8000
