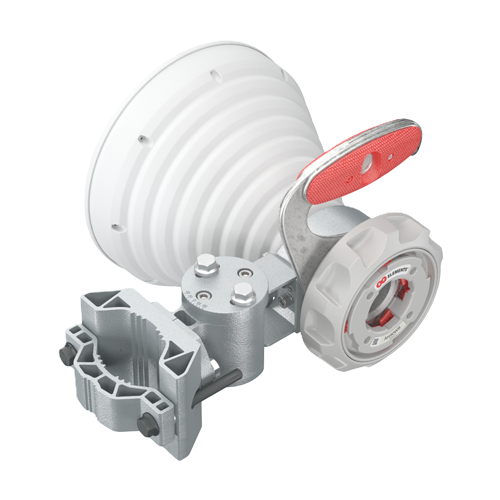

RF Elements HG4-TP-S30 5GHz 18dBi 30° Symmetrical Horn Sector TP Antenna
Call for Price
Symmetrical Horn Antennas provide symmetrical beam pattern with equal beam width in azimuth and elevation. Beam pattern has heavily attenuated side lobes providing for excellent noise immunity. 30° symmetrical beam width is widely preferred option for excellent performance, noise immunity, compact form factor and unmatched scalability of wireless networks.
DATASHEETHG4 introduces re-designed antenna body using aluminum extrusion to substantially increase longevity and outdoor resistance. New design also adds popular UBR bracket – robust solution for easy installation and superb durability proven by tens of thousands deployments in all kinds of environments. Re-designed parts are made of extruded aluminum for excellent corrosion resistance, increased strength and reduced weight.
- Frequency Range 5100-6775MHz
- Gain 18dBi
- Azimuth Beam Width -6dB H 30° / V 30°
- Elevation Beam Width -6dB H 30° / V 30°
- Mechanical Tilt ±25°
- Pole Mounting Diameter 30-80mm
