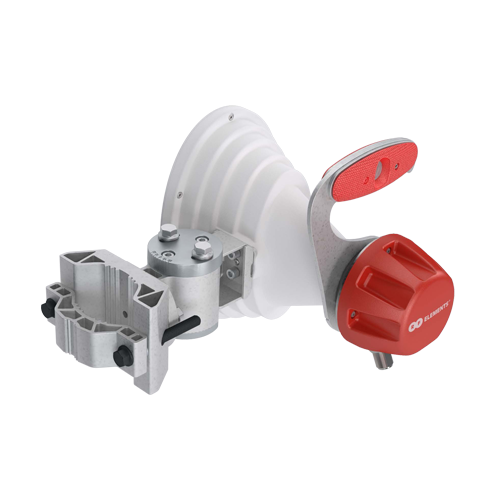

RF Elements HG4-CC-A45 5GHz 17dBi 45° Asymmetrical Horn Antenna
146,00 € (181,04 € incl. VAT)
HG4-CC-A45 provides unique set of features. It combines a compact form factor with asymmetrical beam pattern, providing increased gain, standard coaxial N Female connectors, and a new advanced, corrosion resistant mounting system.
DATASHEETΔιαθέσιμο κατόπιν παραγγελίας
RF Elements HG4-CC-A45 5GHz 17dBi 45° Asymmetrical Horn Antenna
HG4-CC-A45 excels in environment where space is limited, such as dense cluster deployments or micro-PoPs. Asymmetrical beam pattern provides 17dBi of gain together with excellent noise immunity. Antenna is very compact, lightweight and easy to install thanks to UBR mount and integrated handle.
- Antenna Connection 2x N Female
- Frequency Range 5150-6400MHz
- Gain 17dBi
- Azimuth Beam Width -6dB H 44° / V 45°
- Elevation Beam Width -6dB H 30° / V 29°
- Mechanical Tilt ± 25°
- Pole Mounting Diameter 30-80mm (1.1-3.1 inch)
