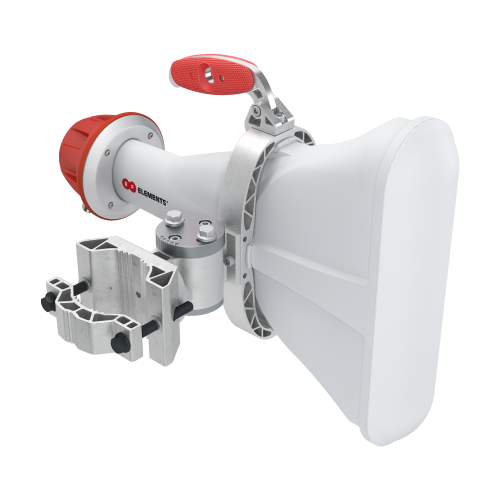

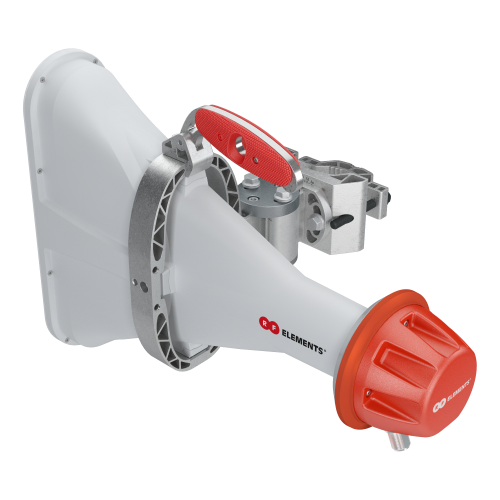

RF Elements AH60-CC 17dBi 60° Asymmetrical Beam Antenna

60° Asymmetrical Horn CC Antenna exceeds the traditional patch array sector antennas thanks to the high stability of the radiation pattern throughout the bandwidth of operation. Outstanding noise rejection and precision of the radiation pattern favor the antenna for high-densityaccess point clusters and densely co-located sites. 60° AsymmetricalHorn CC features a pair of N-female connectors ensuring a wide range of radio connectivity.

• Frequency Range 5180-6000MHz
• Gain 17dBi
• Azimuth Beam Width -6dB H 60° / V 60°
• Elevation Beam Width -6dB H 25° / V 25°
• Mechanical Adjustment ±20° Elevation, ±20° Azimuth
• Pole Mounting Diameter 40-80mm (1.5-3.1 inch)
