Reyee RG-ES207GS-PI-OD 7-Port Gigabit Outdoor Switch with PoE/DC Input
Call for Price

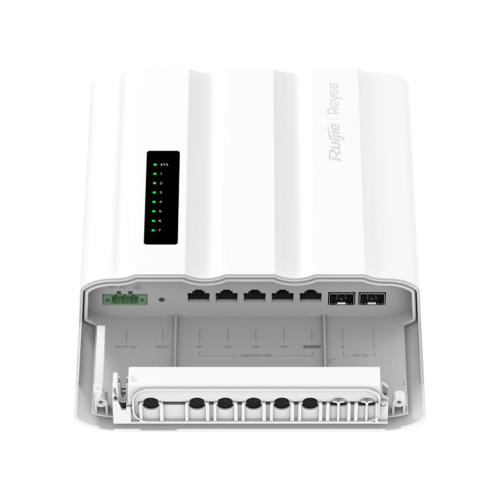

RG-ES207GS-PI-OD is a Ruijie Reyee gigabit outdoor switch designed for outdoor IP surveillance installations. The device has 5x RJ45 ports (10/100/1000 Mbps), including 4x PoE/PoE+ ports, and 2x 1GE SFP ports. The switch can be powered by 12V DC or via PoE/PoE+/PoE++ In, and the available PoE budget depends on the power source: 60W with PoE++ 90W, 40W with PoE++ 60W, 19W with PoE+ 30W, and 6W with PoE 15.4W. The IP65 enclosure, wall- or pole-mounting options, and an operating temperature range of -30°C to +65°C allow the device to be used in harsh outdoor conditions.
DATASHEETThe model supports PoE watchdog, Camera Detection, Cable Test, ERPS, 802.1Q VLAN, port isolation, DHCP Snooping, and management via eWeb, Ruijie Cloud, and the Ruijie Reyee app.
- PoE or 12V DC Input
- 2x SFP Ports for ERPS
- All-in-one Outdoor Switch, 4-in-1 Integration
- High-Level Weatherproofing: IP65 Rating, ±8 kV PoE Surge Protection
- Camera Troubleshooting
- Uninterrupted PoE Power Supply
