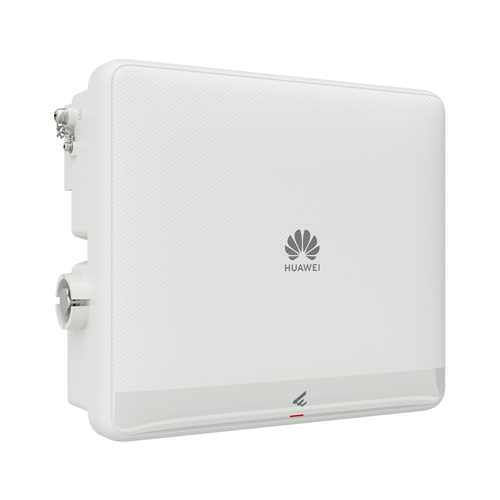

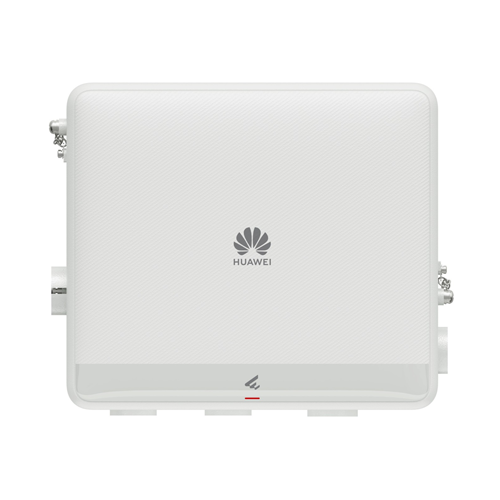

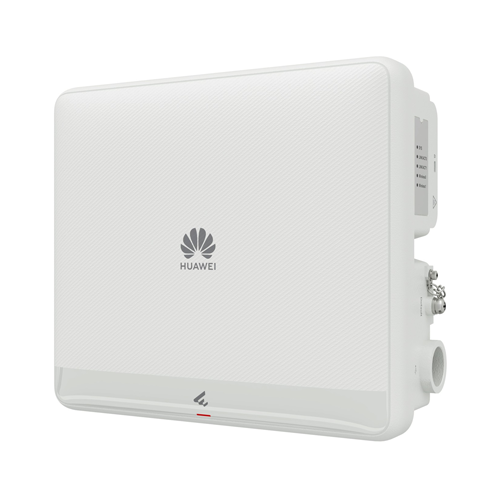

Huawei eKitEngine AP772 BE6450 Omni Dual-Band Gigabit Outdoor Access Point

When the power supply mode is negotiated to 802.3af, the radio mode is limited to 2.4GHz (2×2), the 5GHz radio is disabled, and the radio transmit power decreases by 3dB. When the power supply mode is negotiated to 802.3at and a 5W USB module is used, the radio transmit power decreases by 3dB. The power supply mode is negotiated to 802.3bt, and no function is restricted. The device operates simultaneously on two bands (2.4GHz and 5GHz) and uses MU-MIMO technology along with 4096-QAM modulation, enabling total speeds of up to 6.45Gbps. Built-in omnidirectional antennas ensure coverage with a radius of up to 180 meters, making it an ideal solution for large outdoor networks. Thanks to advanced features like Multi-Link Operation (MLO) and preamble puncturing, the device performs well even in challenging environments with many connected users.

Durability is key. The AP772 withstands extreme conditions – from –40°C to +70°C, has IP68 waterproof and dustproof rating, and a metal casing for better heat dissipation. The Ethernet ports are protected by 6kA surge protection. The access point supports Fit, Fat, and cloud modes, making it easy to adapt to different installation types. Device management is simplified by the intuitive HUAWEI eKit App, allowing fast deployment via Wi-Fi or by scanning the serial number. Cloud management removes the need for a controller and reduces costs. Advanced encryption, authentication, and access control based on the latest standards, including WPA3 and 802.1X, ensure top-notch security.

• Wi-Fi 7 (802.11be) – next-generation extremely fast and stable connection
• Total speed up to 6.45Gbps – 2.4GHz (2×2 MIMO) + 5GHz (4×4 MIMO)
• Coverage radius up to 180 meters thanks to built-in omnidirectional antennas
• IP68 rating – waterproof and dustproof design, suitable for outdoor use
• Wide temperature range – operation from –40°C to +70°C
• 6kA surge protection on Ethernet ports
• Automatic radio calibration for optimal network performance
• Support for Fit / Fat / Cloud modes – flexible deployment in various environments
• Advanced security – WPA3, WPA2, 802.1X, DTLS, and more
• Easy deployment and management via HUAWEI eKit App
